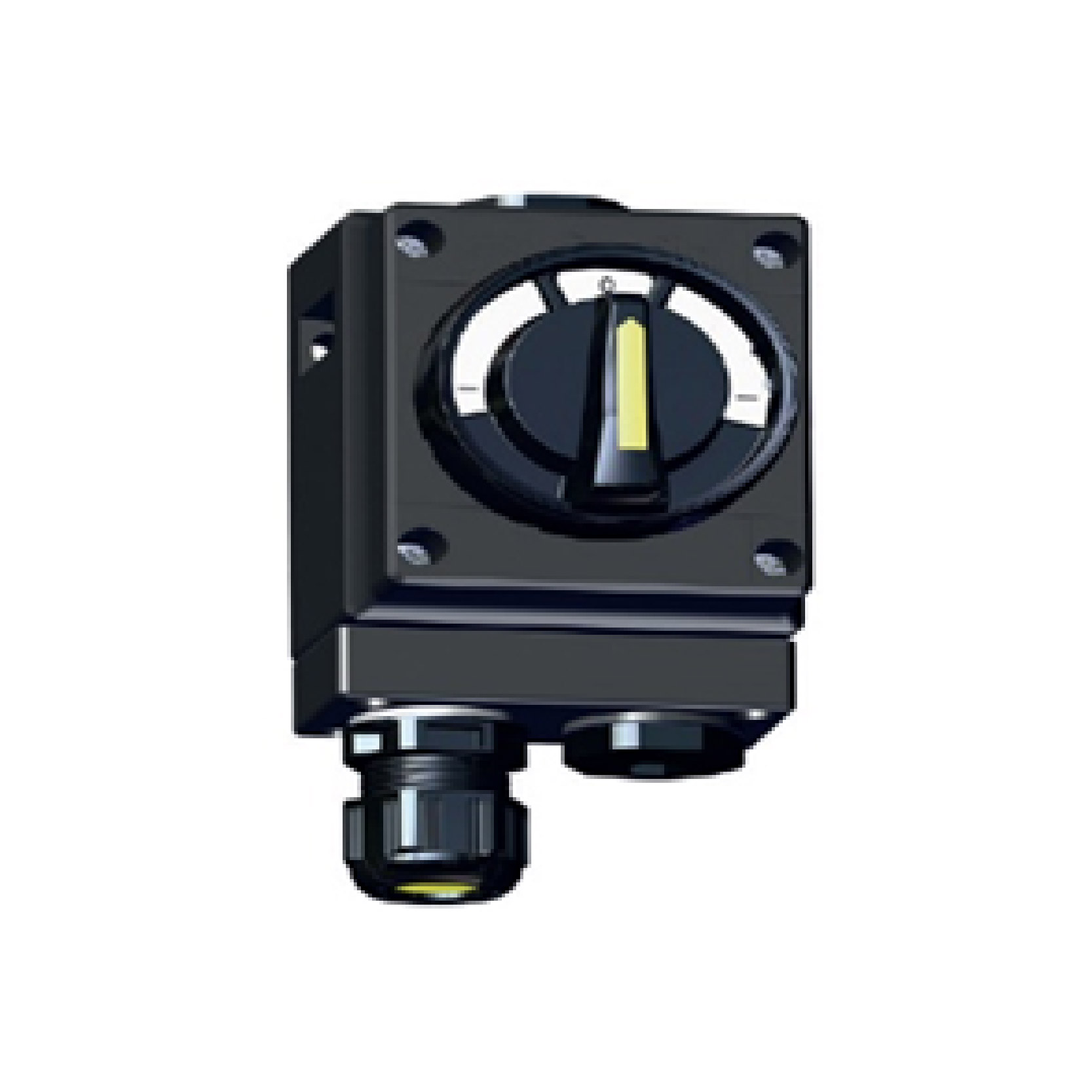

Explosion Proof Switch 8040

The Series 8040 Explosion Proof Switch is a high-performance 2-pole ON/OFF switch designed for use in hazardous areas (Zones 1, 2, 21, and 22). Its rugged enclosure is constructed from optical fibre reinforced polyester resin, providing exceptional durability and corrosion resistance. Fully certified under IECEx and ATEX standards, this switch ensures safe operation in explosive gas and dust atmospheres.

Key Features:

• Switch Type: 2-Pole ON/OFF
• Enclosure Material: Optical fibre reinforced polyester resin
• Explosion Protection:
  • II 2 G Ex db eb ia [ia Ga] ib mb q IIC T6 Gb
  • II 2 D Ex tb IIIC T80°C Db
• Zones: Suitable for Zone 1, Zone 2, Zone 21, Zone 22
• Ingress Protection: IP66 – dust-tight and water-resistant
• Certifications: IECEx & ATEX Certified
• Country of Origin: Made in Germany
• Warranty: 1 Year
