Active Harmonic Filter

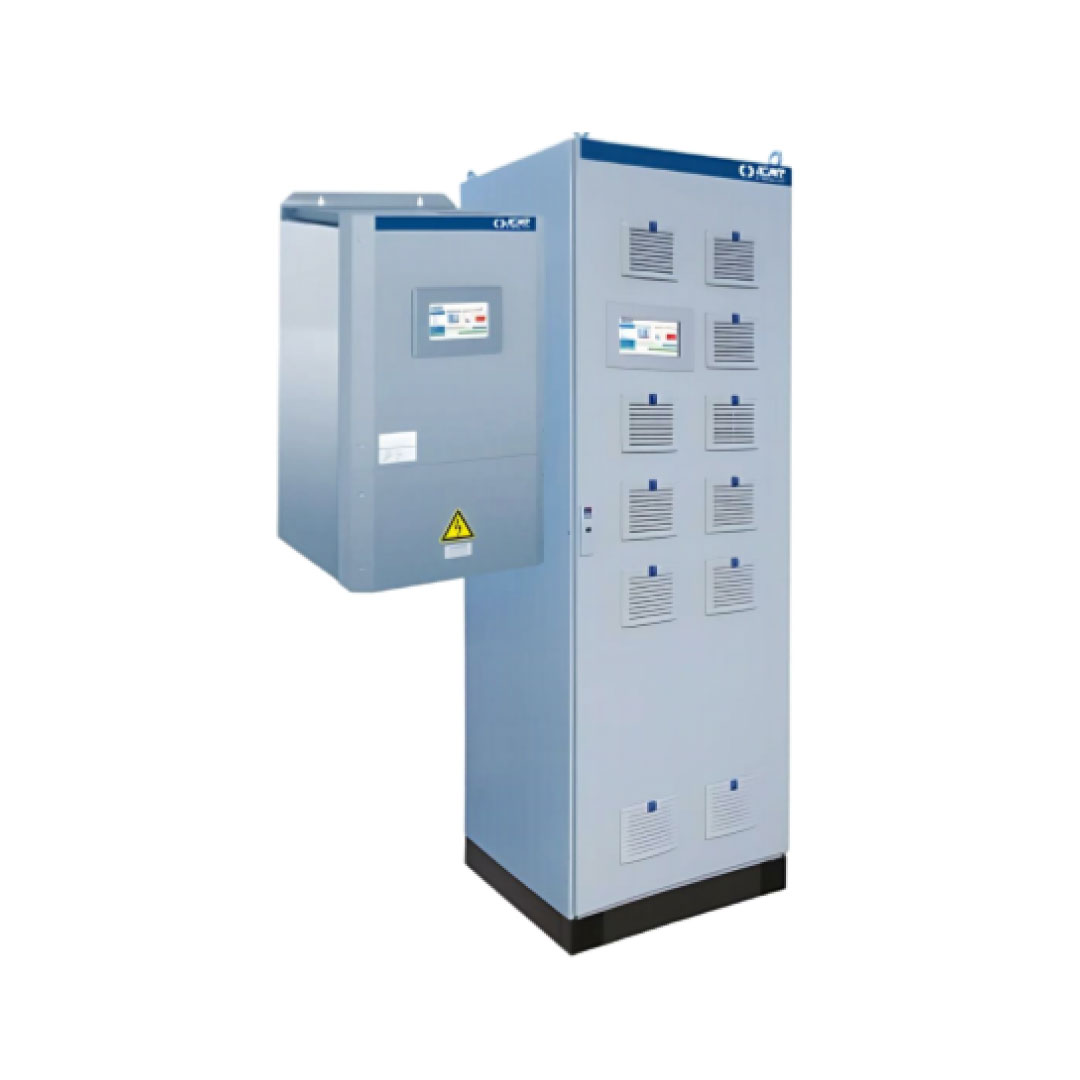

Ortea’s ACTIVEmatic FA40, will dramatically reduce current and voltage harmonic distortion, and the sensitive loads will be prevented from the related troubles. These filters cancel the harmonic distortions in the plant’s current, first measuring them and then injecting the same currents but in inverted phase.

FEATURES

• Voltage Range: 200V – 480V (±10%) | 50Hz / 60Hz
• Compensation Capacity: 60A – 600A (modular, parallel up to 5 units)
• Topology: 3-Level IGBT NPC (lower losses, better efficiency)
• Response Time: <200µs (ultra-fast correction)
• Protection & Safety:
  • Overload, short circuit, overheating protection.
  • Grid resonance detection prevents instability

• Certifications: CE, ROHS, IEEE STD 519-2014, EN 61000-3-2/12
